KR 70 R2100  Data sheet.pdf

1. KUKA KR 70 R2100 Product overview

The KR 70 R2100 belongs to the KUKA series of high-load, large-arm six-axis joint robots, designed for industrial scenarios such as heavy material handling, large-scale welding, casting and machine tool collaboration, taking into account high dynamic performance and operational stability, suitable for automotive manufacturing, heavy machinery, logistics warehousing and other fields.

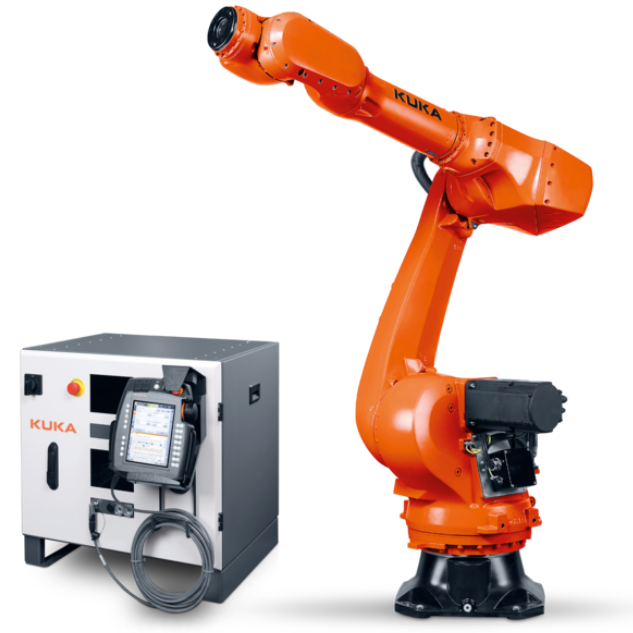

Kuka robot

2. Core performance parameters

                              Parameter                                                   Value/Description

                           Load capacity                                      70 kg (maximum end load)

                   Maximum working range                               2100 mm (Axis 1 to 6)

             Repeated positioning accuracy                                        ± 0.06mm

                         Number of axes                               6 axes (full degree of freedom joint)

                         Protection level                                           IP67/IP69K (optional)

                         Installation mode                        Ground, inverted, or inclined installation

                          The body weight                                                   About 1200 kg

3. Technical highlights

Heavy loads and wide coverage

70 kg high load capacity for handling large metal parts, engine components or heavy pallets.

2100 mm ultra-long arm span, covering a wide range of working areas (such as vehicle welding lines, large machine tool loading and unloading).

Dynamic performance and stability

Optimized joint reducer and drive system to maintain high speed under heavy loads (up to 2.5m /s without load).

High strength casting structure design, reduce vibration during high-speed movement, suitable for precision welding and assembly.

Harsh environment adaptability

IP67/IP69K protection grade, withstand high temperature, dust, oil and high pressure cleaning (casting workshop, food processing line).

Optional explosion-proof version (ATEX certified) for use in flammable and explosive environments (e.g. chemical, spraying workshops).

Intelligent integration

Equipped with KUKA KRC5 control system, it supports multi-robot collaboration and external axis expansion.

Compatible with KUKA.PLC mxAutomation, seamless integration with Siemens/Beckhoff PLC simplifies production line automation.

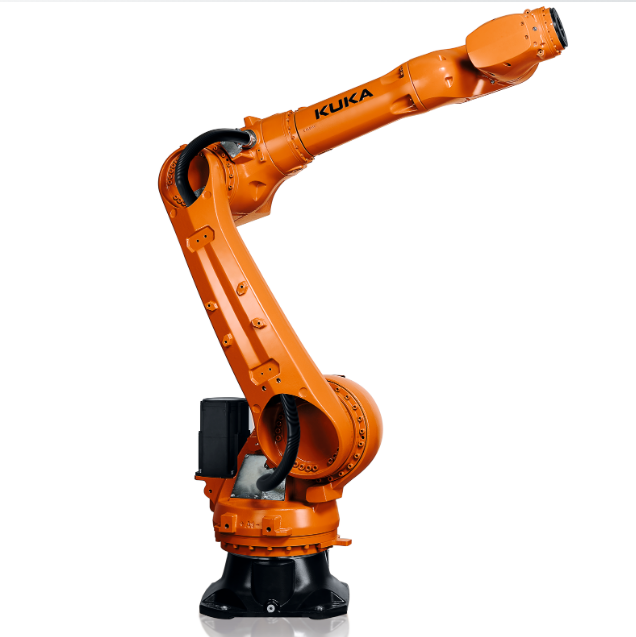

Kuka robot

4. Typical application areas

Heavy handling and palletizing: automatic loading and unloading of workpieces up to 70 kg, pallet stacking (auto parts, building materials).

Wide range of welding: MIG/MAG arc welding, laser welding (body welding, ship structure).

Casting and forging: high temperature casting parts, deburring, infiltration treatment.

Machine tool cooperation: linkage machining center, die casting machine to achieve unmanned production.

Spraying and sealing: heavy machinery anticorrosive coating, automobile chassis sealant spraying.

5. Compare with other models

         Model                        KR 70 R2100                   KR 100-2                         KR 210 R2700

          Load                               70 kg                              100 kg                                  210 kg

 Working range                   2100 mm                       2600 mm                              2700 mm

    Application                    Mid-range                   Long and medium             Over-heavy and

       scenario               overload operation              load handling                   long-haul tasks

If you would like to know the latest prices of Kuka robot, please feel free to contact us！
