IRB1200 Data sheet.pdf

1. Model and version

IRB 1200 5/0.9: Load 5kg, arm span 900mm.

IRB 1200 7/0.7: Load 7kg, arm span 700mm.

2. Core strengths

Compact design: Space saving, suitable for small working environments, such as electronic assembly lines or machining units.

Lightweight: The body weight is light (about 25kg), easy to integrate into the flexible production line.

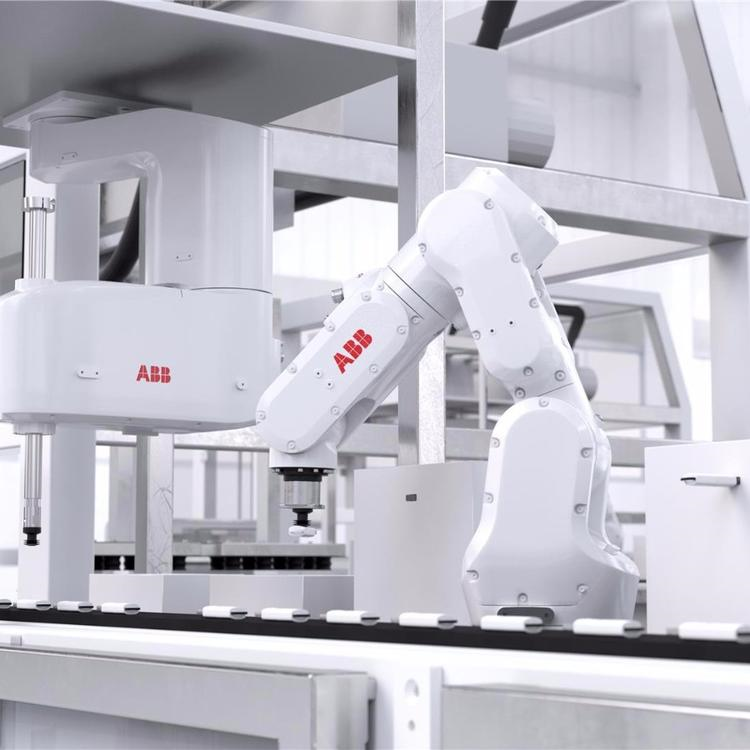

ABB robot

3. Technical parameters

Repeated positioning accuracy: ±0.01mm (top level, suitable for precision operation).

Protection level: Standard IP40, optional IP67 (suitable for wet and dusty environment).

Range of motion: 6-axis design, high flexibility, can cover complex paths.

4. Application Scenarios

Electronics industry: circuit board assembly, precision parts handling.

Automobile manufacturing: welding and gluing of small parts.

Food and medicine: packaging, sorting (IP67 version required).

General industry: machine tool loading and unloading, inspection station operation.

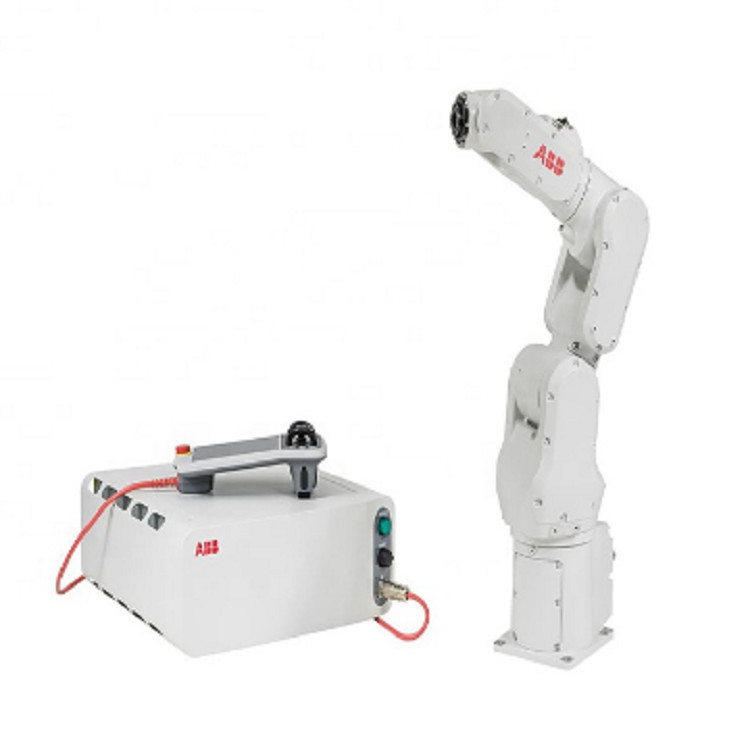

ABB robot

5. Control system

IRC5 controller: Support TrueMove (precise path control) and QuickMove (optimized cycle time) to ensure accuracy at high speed.

RobotStudio: Offline programming tool to reduce downtime and verify solution feasibility through simulation.

6. Security and maintenance

Safety features: Integrated SafeMove2 (according to ISO 13849 PL e), real-time monitoring of torque and speed.

Easy maintenance: up to 20,000 hours lubrication interval, modular structure reduces maintenance difficulty.

7. Industry cases

Automotive parts: A supplier used IRB 1200 for spark plug assembly, which increased efficiency by 30%.

Consumer electronics: For smartphone screen fitting, the yield increases to 99.9%.

8. Contrast and position

Compared to the IRB 1600, the IRB 1200 has a smaller load but is more compact, suitable for space-constrained scenarios. Faster and cheaper than cobots, but with perimeter security.

Summary: The IRB 1200 is known for its high accuracy, compact flexibility, and is ideal for small workpiece handling and space-sensitive environments. If you need a customized solution or a specific price, you are advised to contact your local ABB agent for technical support.
