ABB IRB 660 Data sheet.pdf

1. Product overview

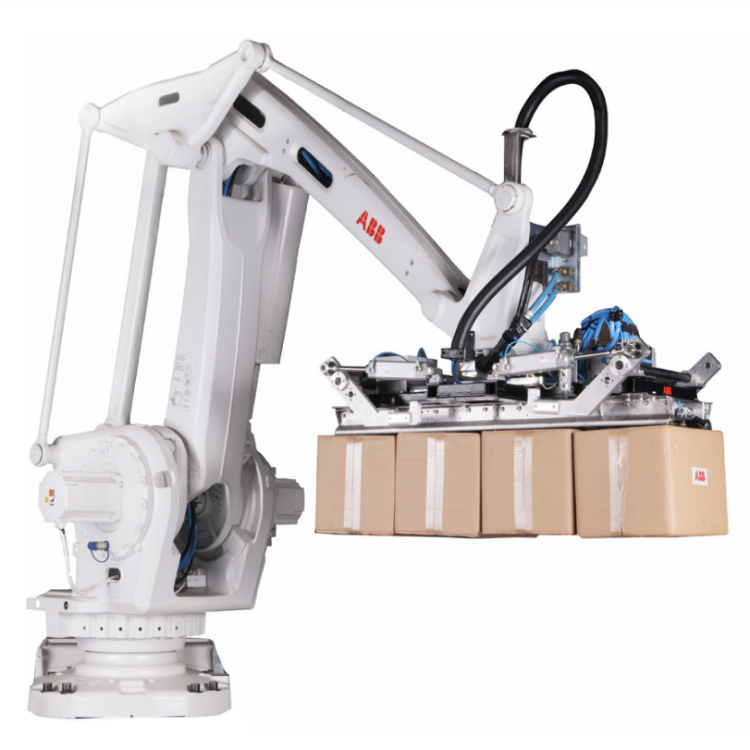

Model Location: ABB IRB 660 is a four-axis industrial robot with large load and long arm span, specially designed for heavy load handling, palletizing, machine tool loading and unloading and other scenarios, suitable for automobile manufacturing, metal processing, logistics and other industries.

Core advantage:

  High load capacity: up to 250 kg (e.g. IRB 660-250/3.2), suitable for heavy material handling.

Long working range: The horizontal arm span can reach 3.2 meters, covering a wide range of working areas.

High stability: Optimized mechanical structure design to support accurate positioning under high-speed repetitive motion (repetition accuracy ± 0.1mm).

ABB robot

2. Technical parameters (Take IRB 660-250/3.2 as an example)

           Characteristic                                                             Parameter

           Load capacity                                                                  250 kg

The maximum working range              3.2 meters horizontally and 4.5 meters vertically

Repeated positioning accuracy                                           ± 0.1mm

            Protection class                       IP67 (optional IP69K, suitable for harsh environment)

               Controller                                   ABB OmniCore™ or IRC5 (depending on model)

           Number of axes                                        4 axes (optimized palletizing path)

      Installation mode Fixed                                      on the ground or inverted

3. Typical application scenarios

Automobile manufacturing: body parts handling, punching line loading and unloading.

Metal processing: casting handling, steel plate stacking.

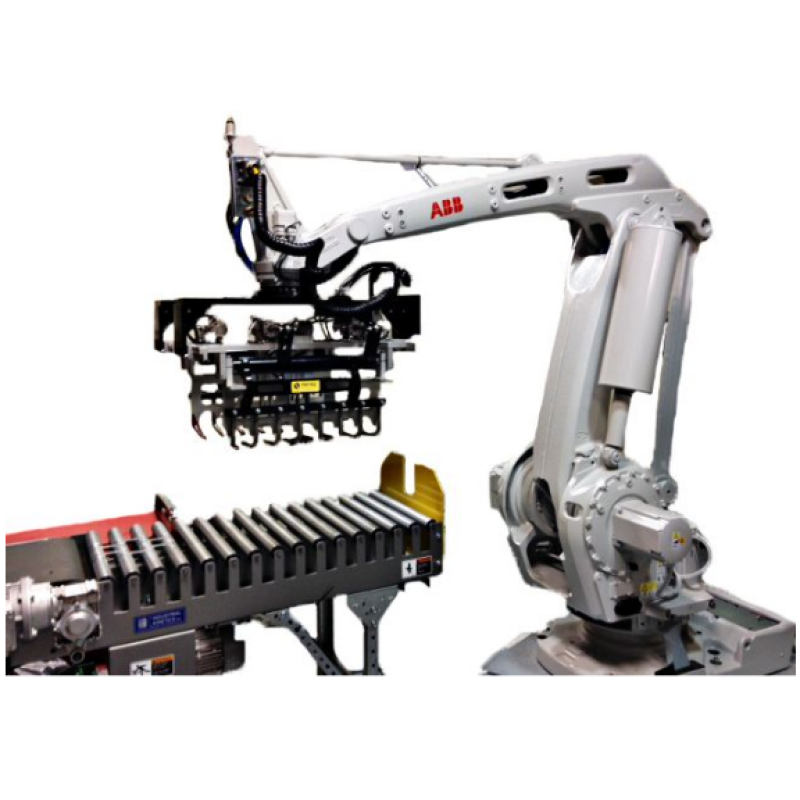

Logistics warehousing: palletizing (box, bagged goods).

Food and beverage: Heavy packing boxes stacked (optional health protection).

ABB robot

4. Core functions and configurations

High-speed palletizing mode: preset palletizing algorithm, support a variety of palletizing types (such as stacking, staggered).

Anti-interference design: suitable for dust and oil pollution environment (IP67/IP69K protection).

Intelligent control:

OmniCore™ controller: Enables real-time path optimization and energy management.

Force control function (optional) : For precision assembly or contact work.

If you would like to know the latest prices of ABB robot, please feel free to contact us
