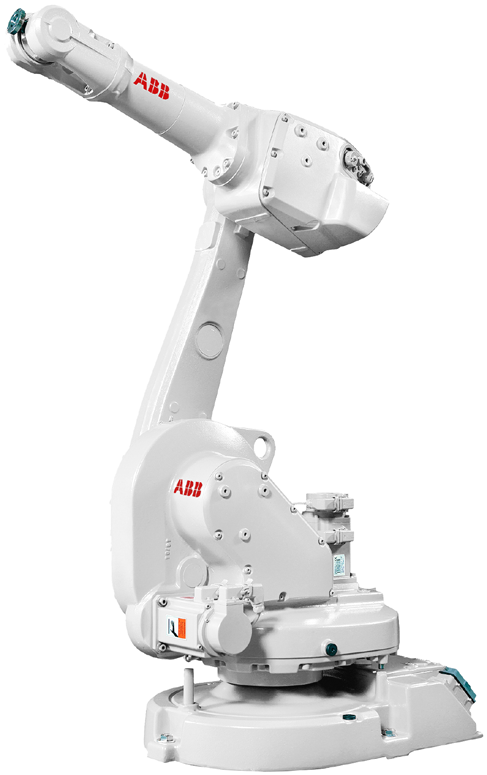

ABB IRB 1600: Robust Precision for Demanding Industrial Tasks

Product Positioning:

"Engineered for heavy-duty precision in welding, material handling, and machining – where durability meets speed."

 ABB robot

Key Technical Specifications:

        Parameter                       IRB 1600-10/1.45                        IRB 1600-12/1.55

         Payload                                  10 kg                                                     12 kg

           Reach                                 1.45 m                                                   1.55 m

     Repeatability                          ±0.05 mm                                          ±0.05 mm

          Weight                                  225 kg                                                   235 kg

        Mounting                                              Floor, wall, or inverted

   Protection Class                      IP67 (standard) / Foundry Plus 2 (optional)

          Controller                                       IRC5 or OmniCore™ V250XT

         Max Speed                                                     180°/s (axis 1)

Core Strengths:

Arc Welding Excellence:

TrueMove™ motion control: Path accuracy <0.1mm at 1m/s weld speed.

ArcWare™ software: Adaptive seam tracking + 50+ pre-programmed weld procedures.

 Heavy-Duty Reliability:

Cast iron gearboxes withstand 200 million cycles (3x industry average).

Foundry Plus 2 option: Heat resistance up to 150°C + dust/steam protection.

Space-Efficient Design:

Slim wrist (Ø135mm) fits tight workcells.

Integrated DressPack™: Pre-routed cables for welding torch/cooling lines (reduces maintenance 40%).

Smart Integration:

ABB Ability™ connectivity: Real-time monitoring of weld quality, energy use, and component wear.

RobotStudio®: Offline programming cuts commissioning time by 80%.
