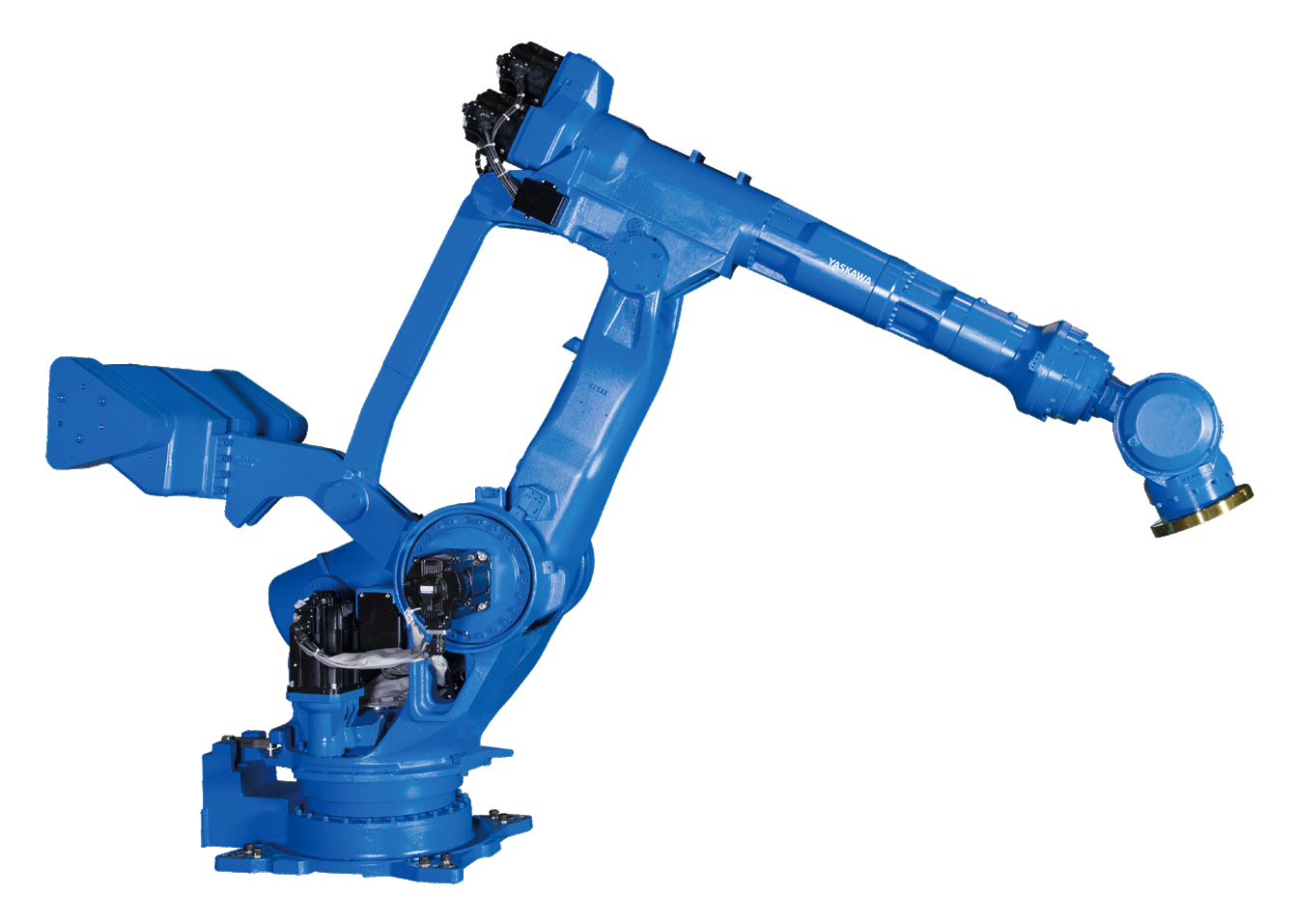

Yaskawa Motoman GP600 Heavy-Duty Palletizing Robot
Model Significance:
GP Series: "General Purpose Palletizer" line engineered for ultra-heavy-load logistics automation.
600: 600 kg payload capacity – the strongest model in Yaskawa’s palletizing portfolio.
Key Technical Specifications:
Parameter | Specification |
Payload | 600 kg (1,323 lbs) |
Max. Reach | 3,137 mm (10.3 ft) vertical stroke |
Axes | 4-axis optimized for vertical motion |
Repeatability | ±0.3 mm |
Max. Speed | 1,600 cycles/hour (400 kg load) |
Protection Class | IP67 (standard); IP69K (optional) |
Controller | YRC1000 / YRC1000micro + PalletSolver™ |
Weight | 1,950 kg (4,299 lbs) |
Performance Highlights:
Unmatched Heavy-Lift Efficiency:
Handles 600 kg loads (e.g., tire stacks, cement drums, automotive batteries) at 40% faster speeds than hydraulic alternatives.
4-axis kinematics minimize inertia for rapid vertical strokes – critical for high-bay warehouses.
️Extreme Environment Durability:
Cast-iron base + hardened steel gears withstand 24/7 operation in cement, foundry, or cold-chain logistics.
Sealed joints & dust-proof wiring (IP69K option for high-pressure washdown).
Intelligent Operation:
PalletSolver™ Pro Software:
Auto-generates mixed-SKU pallet patterns with 3D vision integration.
Collision avoidance for irregular loads.
Yaskawa Cockpit™:
Remote monitoring of energy consumption, maintenance alerts, and OEE analytics.
Plug-and-Play Integration:
Pre-engineered EOAT interfaces (ISO 9409-1-100-M12).
Standard PLC protocols (Ethernet/IP, PROFINET, Modbus TCP).
If you would like to know the latest prices of Yaskawa robot, please feel free to contact us！
