I. Basic parameters of KR210 R2700

Type: six-axis heavy load multi-joint industrial robot

Load capacity: 210 kg (maximum payload)

Maximum working range: 2700 mm

Repeated positioning accuracy: ± 0.06mm

Protection class: IP67 (dustproof and waterproof, suitable for harsh environment)

Installation method: ground/upside down/wall hanging

Control system: KUKA KR C5 (supports intelligent programming and iot integration)

Shaft motion speed:

Axis 1 (base rotation) : 110°/s

Axis 6 (end rotation) : 280°/s

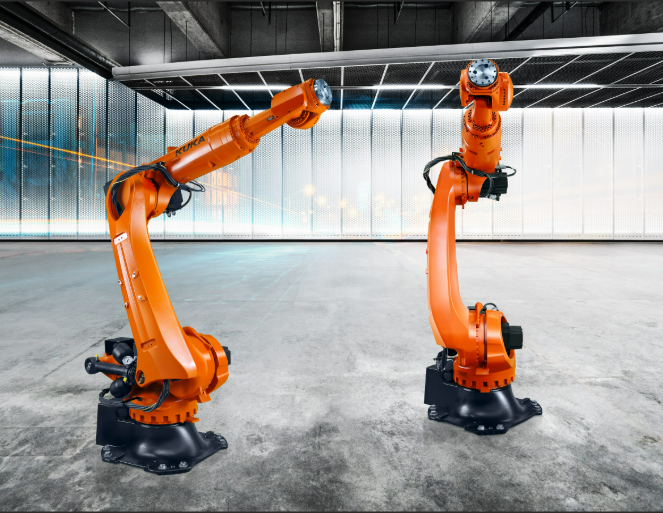

KUKA robot

Ⅱ, core advantages

1. Super load capacity

210kg rated load:

Can handle heavy workpieces (such as car body in white, large molds, metal castings), covering the core needs of heavy industry.

Dynamic load optimization:

Support the end of the additional tool weight (such as welding torch, fixture) up to 50kg, to meet the needs of complex processes.

2. Wide coverage and flexibility

2700mm working radius:

Cover the ultra-long working range (such as multi-station handling, large equipment assembly) to reduce the frequency of equipment movement.

Multiple installation methods:

Support upside down, wall mounting, tilt mounting, suitable for narrow space or high density production line layout.

3. High precision and stability

±0.06mm repetition accuracy:

Maintain high precision under heavy loads to meet precision welding and assembly needs (such as aerospace parts processing).

Strengthen the mechanical structure:

With high-rigidity carbon fiber arm and precision reducer, the life span is up to 100,000 hours, and the maintenance cycle is extended by 30%.

4. Excellent protection and reliability

IP67 Protection Class:

Dust-proof, water-proof, oil-proof, suitable for casting workshop, welding workshop, outdoor dock and other harsh environment.

Impact resistance design:

Joint seal and shock-proof construction for stable operation in high vibration scenarios, such as near punching machines.

5. Intelligent control and high efficiency and energy saving

KR C5 control system:

AI path optimization: Reduce empty running time and increase efficiency by 15%.

Safety features: Support for electronic fencing, collision detection, safe torque limits (according to ISO 10218).

Internet of Things integration: Seamless connection with MES/ERP system through OPC UA protocol to achieve real-time data monitoring.

Energy Recovery technology:

Brake energy feeds back into the grid, reducing energy consumption by 20% and saving more than $15,000 in annual electricity bills (for example, in 24/7 operation).

KUKA robot

Ⅲ. Typical application scenarios

1. Automobile manufacturing

Body in white handling:

Handling body assembly (200-300kg), with visual positioning to achieve cross-production line transfer.

Spot welding and arc welding:

With integrated KUKA welding gun, a single robot can complete the task of 3000+ welding points of the body, and the yield is >99.9%.

2. Heavy industry and casting

Large casting handling:

Transfer 1 ton metal mold, high temperature design (short-term resistance to 80℃ environment).

Casting cleaning:

Equipped with polishing tools to remove casting burrs and replace high-risk manual operations.

3. Logistics and warehousing

Heavy cargo palletizing:

Processing 100-200kg chemical barrels, building materials, support dynamic stacking adjustment.

Port handling:

Linkage with AGV to realize automatic handling of goods in containers.

4. Energy and infrastructure

Wind power blade assembly:

The 10-meter blade is hoisted, and the precise docking is realized by force control technology.

Steel structure welding:

Thick plate multi-layer welding, weld strength to the highest industry standards (e.g. EN 1090).

If you would like to know the latest prices of KUKA robot, please feel free to contact us
