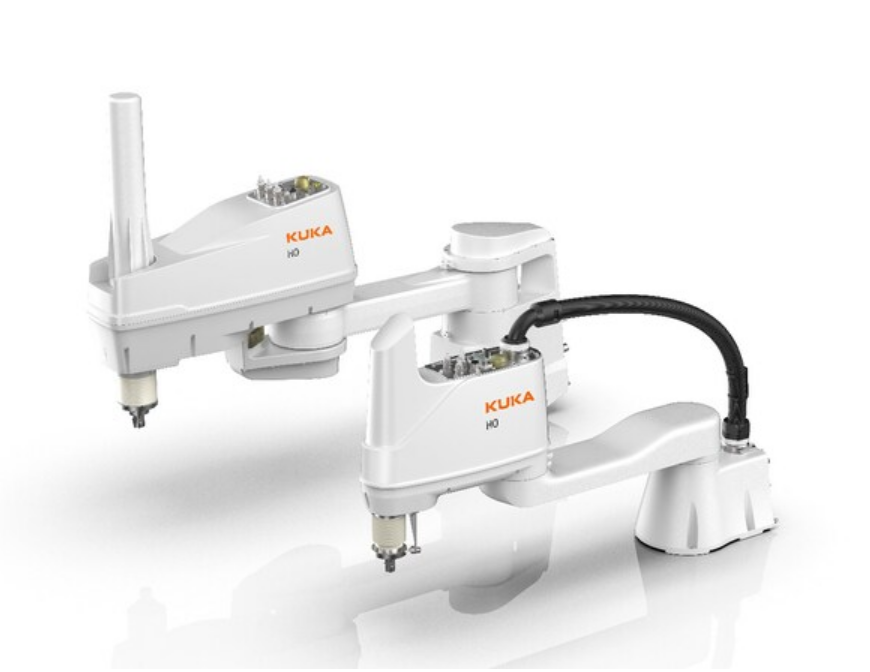

Kuka's new KR SCARA HO series SCARA robot are designed specifically for the food processing industry with rated loads ranging from 6 kg to 13 kg. Sealing technology is used in the design of the whole machine to ensure that the screw and each joint and interface can be effectively sealed, thus achieving a level of protection more suitable for food processing scenarios. It can flexibly deal with two production and packaging processes of food production and processing. This product combines compliance with safety and is an ideal choice for food processing companies.

SCARA robot

Product advantage

Fully enclosed and compact design

Effective spindle protection and even higher levels of protection are possible. The upper part of the screw is covered by a protective cover and the lower part is covered by a bellows, ensuring a high IP protection rating (IP54), which effectively prevents dust and water droplets from entering.

Excellent performance

The KR SCARA HO series robots are capable of fast operation while maintaining high accuracy. Whether it is precise point-to-point operation on the production line or flexible application in the packaging process, the KR SCARA HO series can easily cope with and improve production efficiency.

KR 13 R850 Z340 HO:

The standard cycle time is 0.44 seconds and the repetition accuracy (XY) is ±0.025 mm, ensuring high efficiency and consistency in the production process.

KR 6 R700 Z170 HO:

With a standard cycle time of 0.39 seconds and a repetition accuracy (XY) of ±0.02 mm, it is suitable for applications that require high accuracy and fast cycling.

International certification

The products have obtained EU CE and North American NRTL certification, in line with international safety standards; The grease used is NSF H1 registered and ISO 21469 certified.

The KUKA KR SCARA HO series of robots provides insight into the unique needs of the food processing sector while maintaining excellent performance, providing a more diverse selection and broad possibilities for automation solutions in the industry. The introduction of this product not only further expands the application scope of Kuka SCARA family, but also promotes the overall layout of Kuka in the field of automation, and takes a solid step toward a more ambitious product landscape.
