IRB 7600 Data sheet.pdf

I. Product overview

Position: ABB IRB 7600 is a family of high-load, high-rigidity robots optimized for heavy-duty material handling, welding, assembly and other tasks, especially in harsh industrial environments that require long periods of stable operation.

Advantages: High load capacity (150-500 kg), excellent repetition accuracy, fast beat times, and flexibility to adapt to complex production lines.

2. Key parameters

            Parameter                                                       Specifications (Typical Model Example)

        Load capacity                                                        150-500 kg (depending on the model)

   Maximum working range                                               2.5-3.5m (by arm span model)

Repeated positioning accuracy                                                  ± 0.05-0.2mm

            Freedom                                                     6 axes (standard) or can be extended to 7 axes

         Protection class                                           IP67 (optional IP69K, dustproof and waterproof)

       Installation mode                                             Ground, upside down, tilt and other options

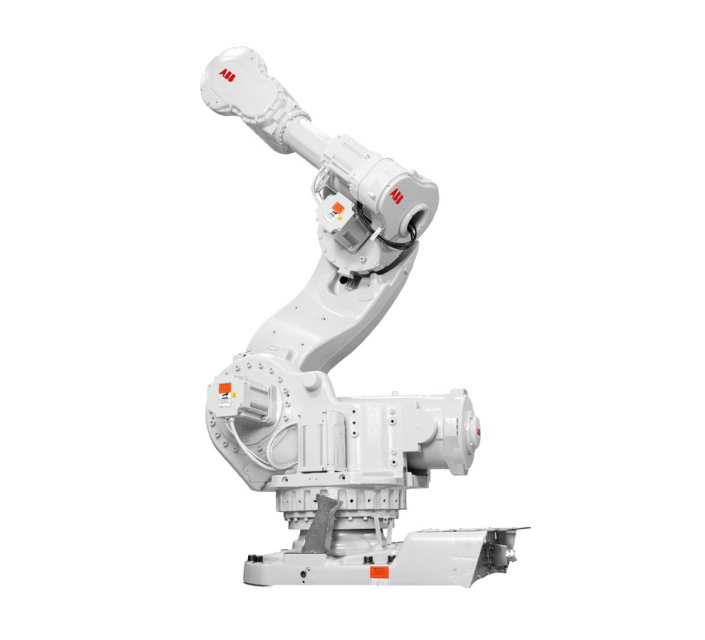

ABB robot

3, core technology highlights

High rigid mechanical structure

The cast-reinforced arm and optimized mechanical design ensure stability and vibration resistance under heavy loads and are suitable for high impact applications (e.g. stamping, forging).

Lightweight design reduces inertia and increases movement speed and energy efficiency.

TrueMove & QuickMove technology

TrueMove: Accurate trajectory control, even high-speed movement can maintain path accuracy, suitable for welding, precision assembly.

QuickMove: Optimizes acceleration, reduces beat time, and improves productivity.

Integration and compatibility

Support Ethernet/IP, PROFINET, DeviceNet and other industrial protocols, seamless docking PLC, sensor and vision systems.

Optional force control sensor to achieve precision grinding, deburring and other flexible operations.

Energy-saving design

Energy recovery technology reduces energy consumption and, combined with ABB's active suspension system (on some models), reduces mechanical wear.

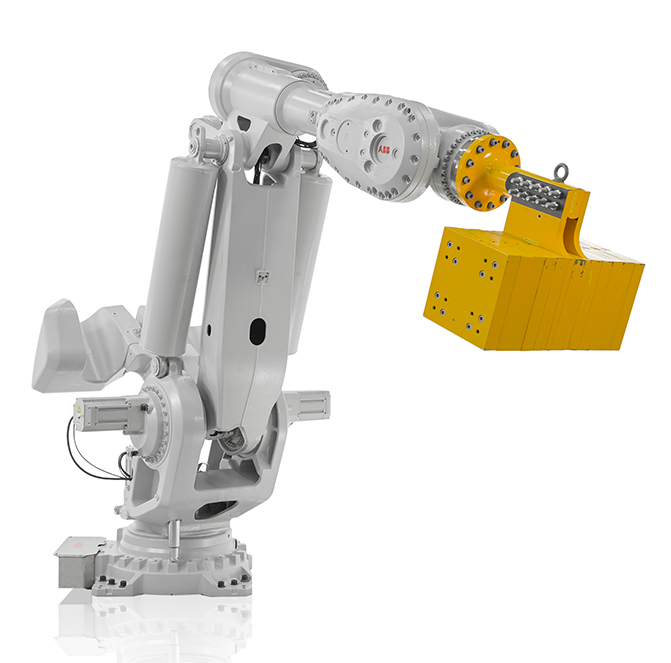

ABB robot

4. Typical application scenarios

Automobile manufacturing

Body spot welding, laser welding, large parts (doors, chassis) handling.

High-precision positioning of body in white assembly line.

Metal working

Casting/forging workpiece taking and placing, punching line loading and unloading.

Deburring and polishing of large castings.

Logistics and warehousing

Heavy pallet palletizing (such as building materials, food and beverage industry).

Container handling, sorting of large cargo boxes.

Other heavy industries

Wind power equipment assembly, construction machinery parts processing.

5. Control System (IRC5)

IRC5 controller: Supports multi-task programming, complex path planning, and built-in security features (such as SafeMove2).

Programming method:

FlexPendant: A graphical interface that supports quick commands.

RobotStudio Offline programming: Virtual simulation reduces field debugging time.

If you would like to know the latest prices of ABB robot, please feel free to contact us！
